In home decoration, many people install double control switches in bedrooms or stairwells to better control lighting fixtures. So, what is the wiring method for a double control switch for a single lamp?
I. Wiring method for a double control switch for a single lamp:

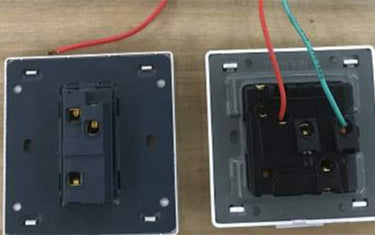

1. Choose a three-hole single pole single throw switch. This type of switch has three connection points: L, L1, and L2. If the switch only has two holes, it cannot be connected properly.
2. When wiring, first connect the L1 terminals of the two switches together using a wire, and also connect the L2 terminals of both switches together. Note that the colors of the two connecting wires should be the same. Alternatively, you can connect the L1 and L2 terminals of the two switches in a cross pattern.
3. Only the L terminals of the two switches remain empty. At this point, you just need to connect one of the L terminals to the live wire from the power supply and the other L terminal to the lamp holder. If the distances are suitable, the connections for these two terminals can be interchangeable. Finally, connect the neutral wire to the lamp holder.
II. What are the precautions for switch wiring?
1. The importance of switches is self-evident; they are crucial for controlling the flow of electricity. Without switch control, electrical appliances would remain powered on continuously.
2. When wiring, first check the colors of the wires, and connect according to the principles of wire color: cool-colored wires represent neutral wires, warm-colored wires represent live wires, and mid-colored wires represent ground wires.
3. If there is an issue with the junction box in the wall, it needs to be replaced immediately with a new junction box, which should then be secured with cement and sand. However, when replacing the junction box, the specifications and dimensions must match; otherwise, you will need to cut another hole in the wall, making proper installation impossible.
4. When replacing the junction box, do not alter it arbitrarily; otherwise, the outlet may not be installed correctly into the junction box, which would have the opposite effect.
Article summary: That's all about the wiring method for a double control switch for a single lamp and the precautions for switch wiring. If you want to learn more information, please continue to follow us.
