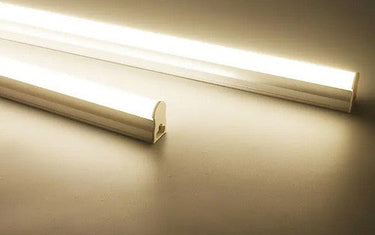

The advancement of lighting these days isn't most effective in look but additionally in their design. Many households are presently putting in LED lighting, so let's test the way to wire LED tubes.
I. the way to twine LED Tubes
There are three techniques: -ended wiring, unmarried-ended wiring, and staggered wiring.
1. -Ended Wiring
this is an early normally used method that is easy to wire and operate, and many LED tube producers nevertheless adopt it today, inclusive of strategies familiar from conventional fluorescent tube replacements.
Wiring method: brief the two pins of the lamp holder collectively and join them to the internal consistent contemporary energy supply. while using this wiring technique, you most effective need to take away the traditional starter to make it work usually.
2. unmarried-Ended Wiring technique
on this technique, one quit of the LED tube isn't stressed, whilst the other quit has its two pins linked to the regular modern-day motive force. there is no connection between the 2 lamp heads.
This wiring technique is safer due to the fact if one cease of the LED tube is attached to AC electricity, the alternative stop will without a doubt no longer be live. whilst replacing a conventional fluorescent lamp, the authentic starter must be eliminated and replaced with a starter fuse, after which the tube may be installed.
3. Staggered Wiring approach: this is an revolutionary wiring approach that has some necessities for the internal driver of the LED tube and calls for AC enter terminals.
Wiring technique: whilst replacing, you simplest want to trade the tube, which makes the operation very convenient. This wiring approach is compatible with digital ballasts from Philips, Osram, Hitachi, Panasonic, Toshiba, and so on.
advantages: it could work typically with or without a starter.
II. the way to select LED lighting
1. test the Packaging
86f68e4d402306ad3cd330d005134dac LED strips use anti-static roll packaging, commonly 5 meters or 10 meters lengthy, with an outer anti-static and moisture-evidence packaging bag. In evaluation, some counterfeit LED strips reduce expenses by means of the usage of recycled spools without anti-static and moisture-proof packaging. in case you look closely at the spool, you might even see strains left from doing away with labels.
2. check the add-ons
great LED strips will include user instructions and specs within the packaging, as well as LED strip connectors or clips. Such add-ons in the packaging of best LED strips are frequently no longer located in counterfeit variations, which could keep cash. they may be produced the use of reflow soldering era, resulting in easy solder joints with minimum solder. The solder joint will amplify easily from the FPC solder pad to the LED electrode, while counterfeit LED strips have choppy solder joints with severa solder blobs, indicative of common hand soldering.
3. check out FPC high-quality
FPC is available in sorts: copper-clad copper and rolled copper. The copper foil lined with copper sticks out; if you look closely, you may see it on the junction among the solder pads and the FPC. The rolled copper is tightly bonded to the FPC, allowing it to bend freely with out detaching. If the copper-clad board is bent an excessive amount of, it is able to detach, which could result in overheating during repairs.
4. surface Cleanliness
If the LED strip is produced using SMT technology, its surface cleanliness can be excellent, and not using a impurities or stains. but, LED strips produced via hand soldering will continually show stains and marks, in spite of cleaning attempts, inclusive of the FPC floor having soldering flux and solder waste.
Article summary: This concludes the records on how to twine LED tubes. if you need extra statistics, please retain to follow us.
